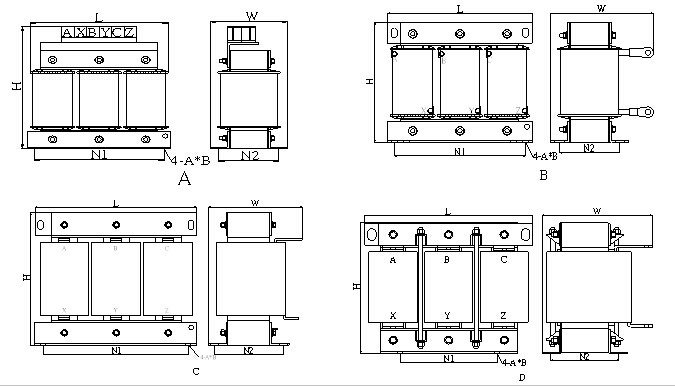

| 適配電容容量（KVAR） | 型號 | 電流A | 電感Mh | 壓降V | 外形尺寸(L*W*H） | 安裝尺寸（N1*N2） | 重量（Kg) | 參考結構 |
| 5 | CKSG-0.3/0.4-6% | 7.2 | 6.062 | 13.8 | 150*100*160 | 137*66 | 4.7 | A |
| 7.5 | CKSG-0.45/0.4-6% | 10.9 | 4.041 | 5 | A | |||
| 10 | CKSG-0.6/0.4-6% | 14.5 | 3.031 | 180*155*160 | 165*87 | 8.4 | B | |
| 12 | CKSG-0.72/0.4-6% | 17.4 | 2.526 | 8.5 | B | |||
| 14 | CKSG-0.84/0.4-6% | 20.3 | 2.165 | 8.8 | B | |||
| 15 | CKSG-0.9/0.4-6% | 21.7 | 2.021 | 8.8 | B | |||
| 16 | CKSG-0.96/0.4-6% | 23.2 | 1.894 | 9 | B | |||
| 20 | CKSG-1.2/0.4-6% | 29 | 1.515 | 230*160*185 | 210*79 | 12.5 | B | |
| 24 | CKSG-1.44/0.4-6% | 34.8 | 1.263 | 13 | B | |||
| 25 | CKSG-1.5/0.4-6% | 36.2 | 1.212 | 13 | B | |||
| 28 | CKSG-1.68/0.4-6% | 40.6 | 1.082 | 230*170*185 | 210*89 | 15 | B | |
| 30 | CKSG-1.8/0.4-6% | 43.5 | 1.01 | 15.5 | B | |||
| 32 | CKSG-1.92/0.4-6% | 46.4 | 0.947 | 230*180*185 | 210*99 | 17.6 | B | |
| 36 | CKSG-2.16/0.4-6% | 52.2 | 0.842 | 18 | B | |||
| 40 | CKSG-2.4/0.4-6% | 58 | 0.758 | 230*195*185 | 210*109 | 20 | B | |
| 45 | CKSG-2.7/0.4-6% | 65.2 | 0.674 | 270*200*235 | 245*112 | 26 | B | |
| 50 | CKSG-3.0/0.4-6% | 72.5 | 0.606 | 26 | B | |||
| 60 | CKSG-3.6/0.4-6% | 87 | 0.505 | 300*200*265 | 275*127 | 30 | B | |
| 72 | CKSG-4.32/0.4-6% | 104.3 | 0.421 | 30.5 | B | |||
| 80 | CKSG-4.8/0.4-6% | 115.9 | 0.379 | 300*220*265 | 275*142 | 36 | B | |
| 90 | CKSG-5.4/0.4-6% | 130.4 | 0.337 | 36.5 | B | |||
| 100 | CKSG-6.0/0.4-6% | 144.9 | 0.303 | 300*235*265 | 275*152 | 41 | B | |
| 120 | CKSG-7.2/0.4-6% | 173.9 | 0.253 | 300*235*300 | 275*164 | 53 | C | |
| 150 | CKSG-9.0/0.4-6% | 217.4 | 0.202 | 300*245*300 | 275*174 | 61 | C | |
| 180 | CKSG-10.8/0.4-6% | 260.9 | 0.168 | 350*250*300 | 275*179 | 63 | C | |
| 200 | CKSG-12.0/0.4-6% | 289.9 | 0.152 | 350*240*340 | 325*169 | 77.5 | C | |
| 250 | CKSG-15.0/0.4-6% | 360.8 | 0.122 | 420*235*385 | 385*152 | 98 | D | |
| 300 | CKSG-18.0/0.4-6% | 434.8 | 0.101 | 420*260*385 | 385*167 | 114 | D |
